TEST INDICATORS
Shop Test Indicators
A test indicator measures the deflection of the arm. Rather than retracting like a conventional indicator, the probe swings in an arc around its hinge point. Interchangeable attachments for length or ball diameter enhance capability. Appropriately fitted, measurements to be taken in narrow grooves and small bores where the body of a probe type may not reach.

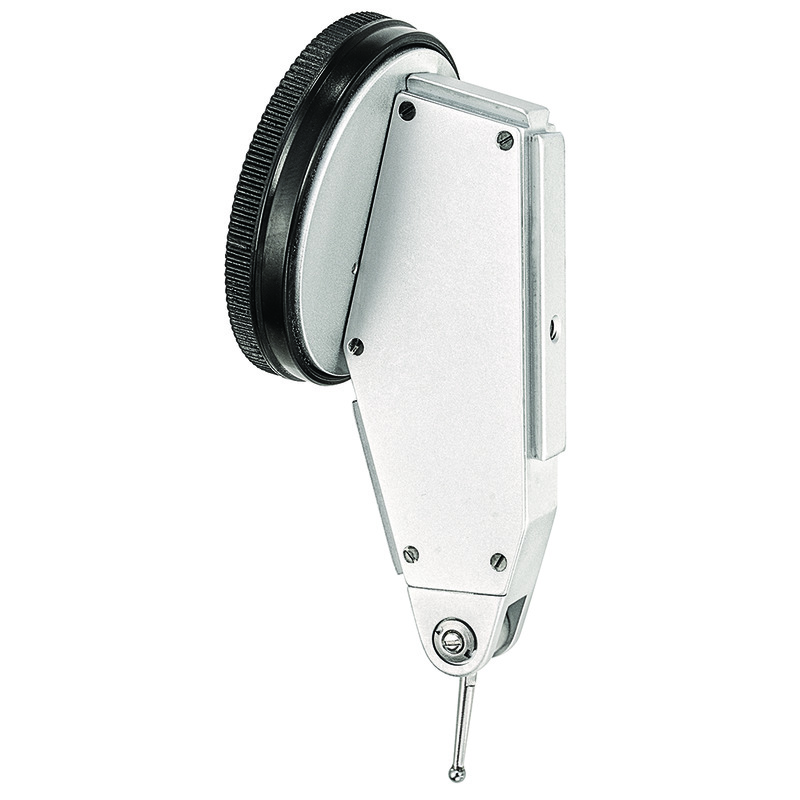

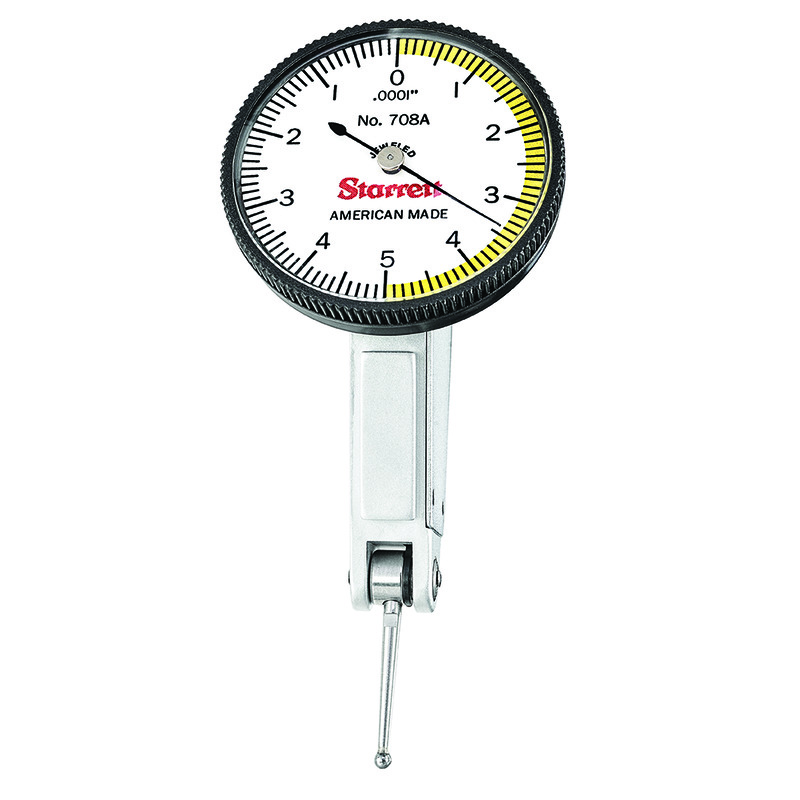

708, 708M, 709, 709M Dial Test Indicators with Dovetail Mounts
These precision test indicators offer an easy to read angled head and the flexibility of three dovetail mounts.
Features include:
- Large 1-3/8" (35mm) dial diameter with angled head
- Precision gear-driven design with smooth, jeweled movement
- Replaceable contact point reverses automatically, always maintaining clockwise hand rotation
- Satin chrome finish for durability
- Contacts are frictionally adjustable and replaceable
- Revolution count hand on 708B and 709B models
- Meet or exceed ISO accuracy specification

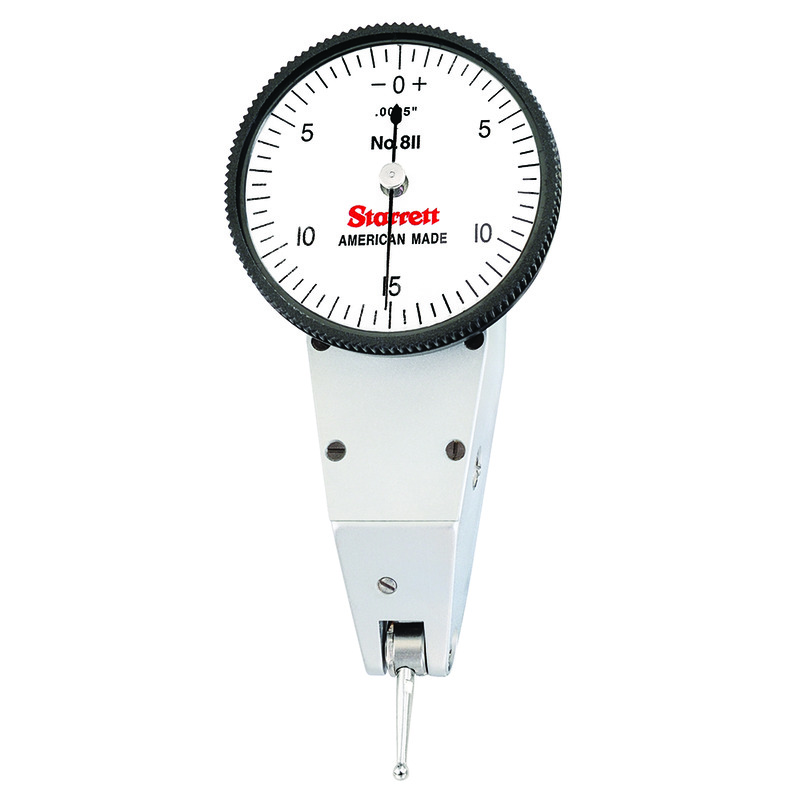

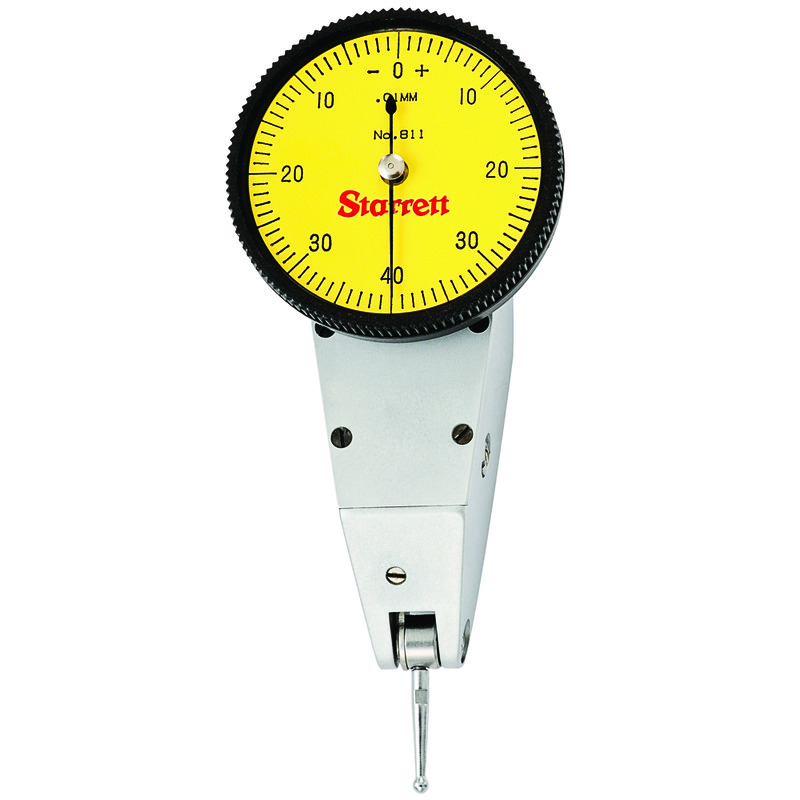

811, 811M Dial Test Indicators with Swivel Head
These are some of the most versatile and unique indicators available, the swivel head feature allows positioning to suit your line of sight from horizontal to vertical and at any angle up to 90º.
Features include:
- Two positioning mounts work with dovetail test indicator accessories
- Contacts are frictionally adjustable and replaceable
- Contact point reverses, always maintaining clockwise hand rotation
- Contacts also available individually in steel, carbide, and different sizes
- Smooth, jeweled movement
- Large, 1-3/8" (35mm) dial diameter for increased readability
- Inch reading indicators are available with white, red, or black dials – metric indicators with yellow dials

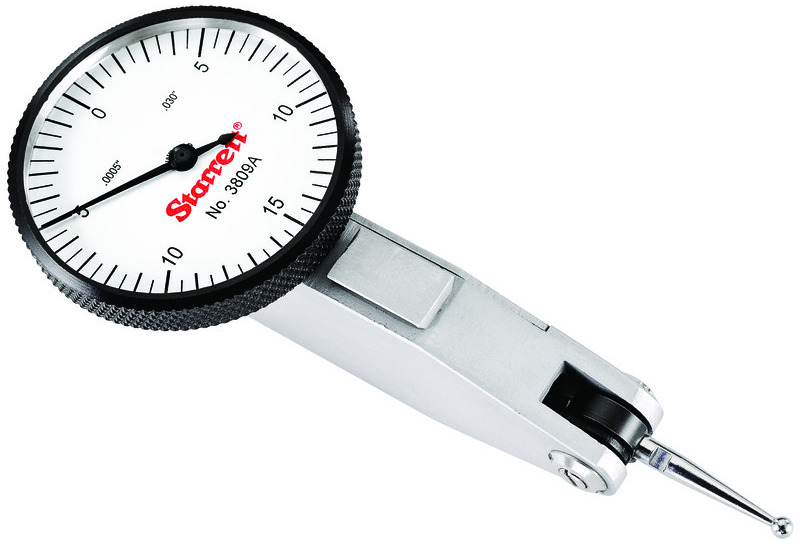

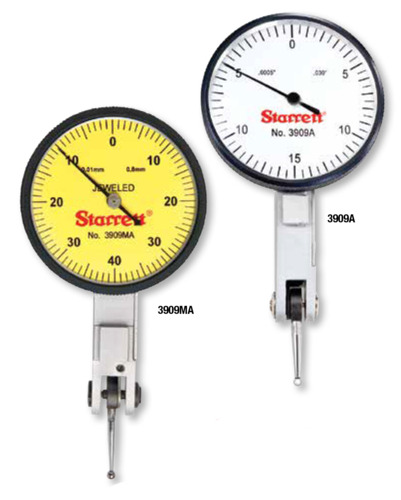

3808, 3809, 3908 and 3909 Dial Test Indicators with Dovetail Mounts (Imported)
These dial test indicators are offered with choices of dial size, range and include accessories. All 3808 and 3809 models have 1-1/4" (32mm) dial faces while 3908 and 3909 models offer a larger 1-9/16" (40mm) dial face.
Each inch reading and metric reading 3808, 3809, 3908 and 3909 is offered with a choice of two Graduation/ Range/Reading configurations.
Features include:
- Precision gear-driven design with smooth, jeweled movement
- Frictionally adjustable contact point reverses automatically, always maintaining clock-wise hand rotation
- Meets or exceeds ANSI/ASME accuracy specifications
- High contrast, easy-to-read dials with white background for inch and yellow for metric

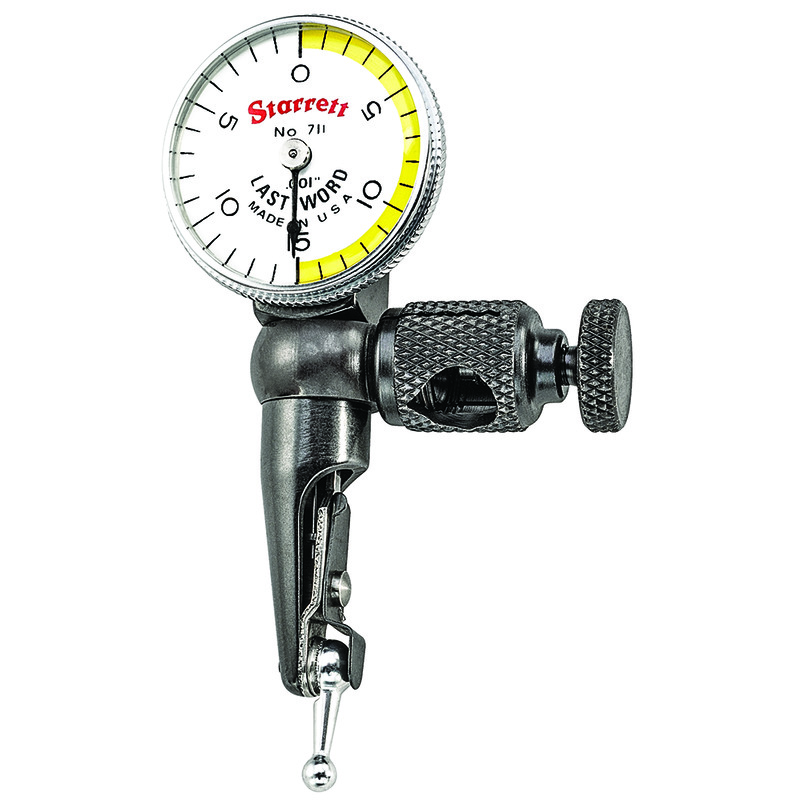

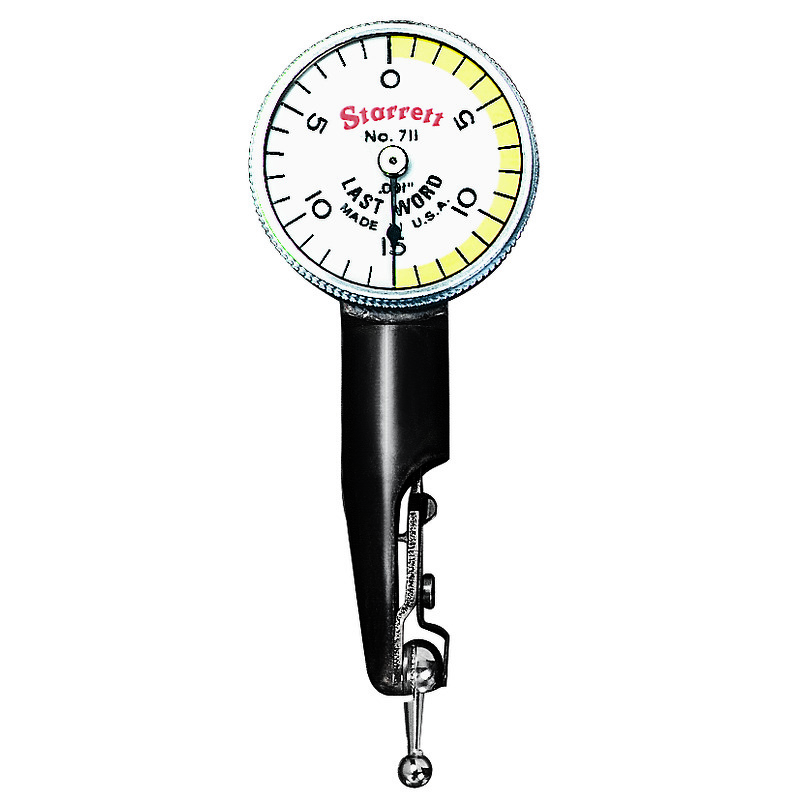

711, 711M Last Word Dial Test Indicators
The venerable Last Word Dial Test Indicator is among the most versatile available. Their small size and variety of attachments will handle all jobs with ease and accuracy. A very useful feature is the shaded dial when used with a mirror, such as in a jig bore application, the operator will always know what the correct reading is.
Features include:
- Ideal for precise measurements in all machining, layout, and inspection work
- Smooth, jeweled lever action
- Positive reversing switch
- Hard chrome-plated ratchet contact point
- Swiveling tubular body
- Easy reading dials, half yellow for clarity
- Variety of attachments available to suit the application.
Indicators having C in the catalog number are furnished with 3 interchangeable steel contact points. All other indicators are furnished with one interchangeable steel contact point, PT07087. Carbide points available as listed.
