Off-Line Profilometer

An automated, non-contact measurement system to displace checking with
hand tools.

Off-Line Profilometer

Tread and sidewall extrusions can be no more precise than the dies used to make them. When a new die is cut it should be well-centered, so the Operator has the flexibility to optimize the extruder set-up. After some time in service, die wear can be uneven so that certain areas along the profile get excessive rubber flow. This is a very costly waste of raw materials. Unbalanced flow can also disrupt the symmetry of the tread - a factor that influences cured tire uniformity and balance.

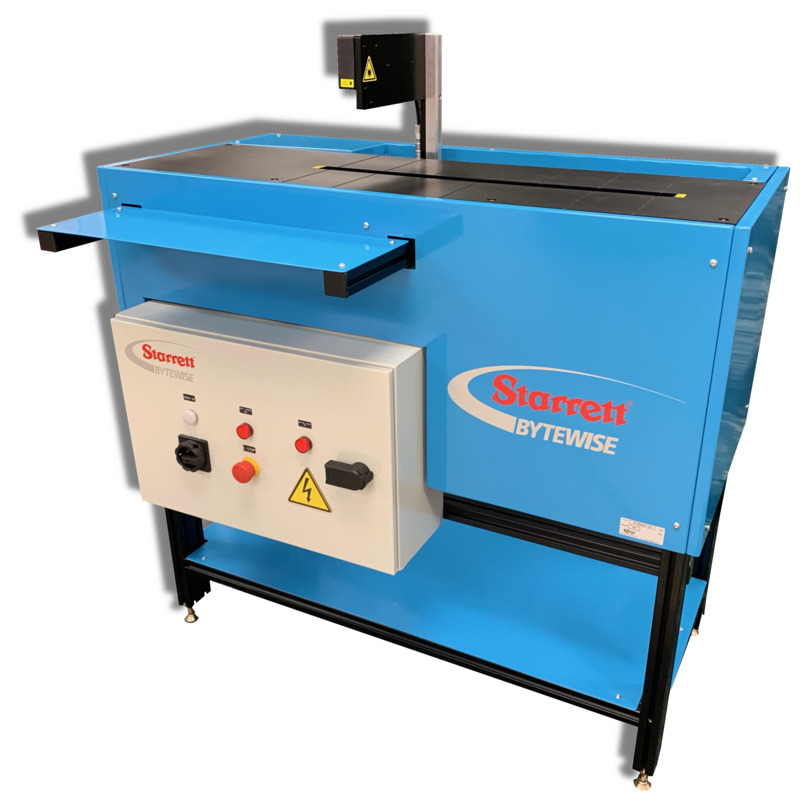

The Starrett-Bytewise Profilometer was developed as an automated, non-contact measurement system to displace checking with hand tools. The Profilometer is used to verify the accuracy of newly-cut dies. Its accuracy
and speed helps reduce the number of die trials needed to approve a new die for production. Once in production, the Profilometer is used to check each run for overall quality, and to monitor for die wear.

Features and Specifications

  • The visual display overlays the measurement onto the specified design.
  • The point and gage analysis measures the thickness and width of each breakpoint.
  • The conicity analysis compares the right and left extrusion halves.
  • The regional analysis reports the area and center of gravity for each region.
  • The statistical analysis allows export of data for analysis in spreadsheet applications.
  • Experienced users report that fewer die trials are needed, conserving time and raw materials.
  • Dies can be designed to increasingly tighter tolerances for materials that are more difficult to extrude uniformly.
